3-Tier Adjustable Container End Racking Kit — QF1066 (Ref 2764)

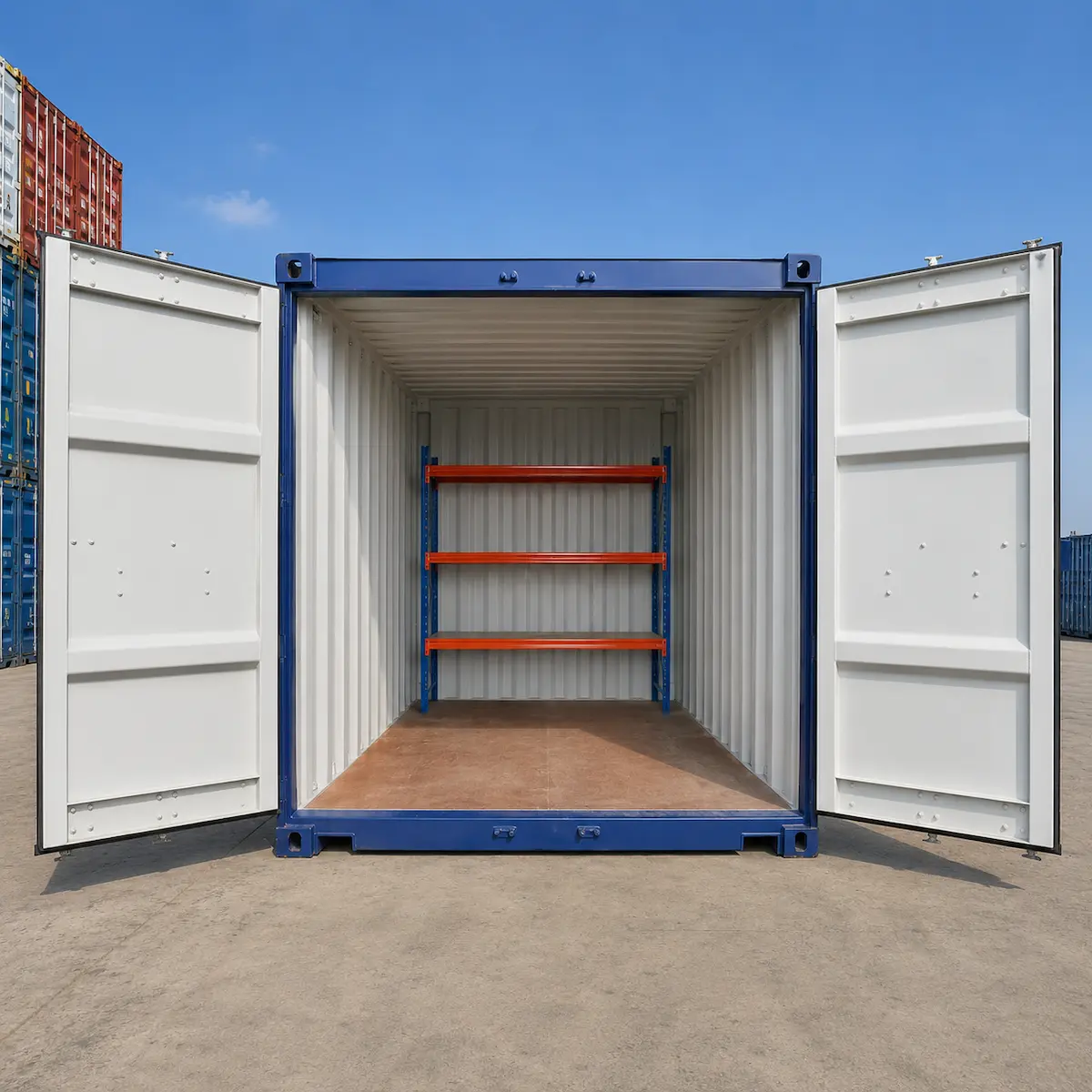

A 3-tier container end racking kit designed to fit against the end wall of a 20ft or 40ft shipping container. The extra shelf tier over the 2-tier variant gives 50% more racked storage in the same 1,850 mm bay footprint — suited to high-density parts, tool, or consumables storage where floor space is at a premium. Adjustable shelf heights allow the buyer to arrange the three levels for different item heights.
Kit Contents
- 2 × pre-assembled end frames — 2,000 mm high × 600 mm wide
- 2 × beams per shelf level — 6 beams total (3 shelves)
- 3 × 25 mm chipboard shelf boards
- Safety clips to secure beams to end frames
- All hardware included
Specifications
| Bay width | 1,850 mm — single bay |
| Frame height | 2,000 mm |
| Frame depth | 600 mm |
| Number of tiers | 3 shelves (adjustable height in 50 mm increments) |
| Shelf material | 25 mm chipboard |
| Load rating per shelf | 550 kg uniformly distributed |
| Total kit load rating | 1,650 kg (three shelves) |
| Frame construction | Steel — powder coated blue and orange |
| Beam construction | Steel — powder coated |
| Finish | Scratch-resistant powder coat |
| Assembly | Bolt-together — no welding required |
| Fixings to container | Free-standing — no fixings to container required |
| Condition | New — manufactured product |
Container Compatibility
| 10ft containers | Not compatible — insufficient depth for this end kit |
| 20ft containers | Compatible — fits against the end wall alongside side racking |
| 40ft containers | Compatible — fits against the end wall when used ALONE; not compatible with side racking on both walls simultaneously (insufficient floor space) |
| Combines with | Two-tier or three-tier side racking (sold separately) — with fit-out limits per size, see notes |
40ft Container Fit-Out Notes
In a 40ft container, you can choose either:
- Side racking on both walls (two-tier or three-tier) — no end racking, keeps the end wall clear for larger items
- End racking (this kit) plus side racking on one wall only — mixes bulk storage on one side with racked storage on the other and end
- End racking only (this kit) — maximum floor space for pallets or machinery, one bay of racked storage against the back wall
You cannot fit side racking on both walls PLUS end racking in a 40ft — the floor space required for beam clearance is not available.
2-Tier vs 3-Tier — Which to Choose
| Consideration | 2-Tier | 3-Tier (this kit) |
|---|---|---|
| Shelf area | 2 shelves at 1,850 × 600 mm | 3 shelves at 1,850 × 600 mm |
| Total load rating | 1,100 kg | 1,650 kg |
| Shelf-to-shelf clearance | ~950 mm typical spacing | ~600 mm typical spacing |
| Best for | Bulky items, larger parts, tools with height | Smaller parts, consumables, high-density storage |
| Price differential | Lower base cost | +$45 for one extra shelf |
Key Features
- Fits against the end wall of a 20ft or 40ft shipping container
- No fixings required to the container — protects CSC certification and resale value
- 550 kg load rating per shelf — heavy-duty use
- Adjustable shelf height in 50 mm increments
- Three shelves — 50% more racked storage than 2-tier variant
- Powder-coated steel frames — scratch-resistant, corrosion-protected finish
- 25 mm chipboard shelves — solid surface for tools, parts, and inventory
- Safety clips secure beams to end frames
- Bolt-together assembly — no welding required on site
- Modular — combines with side racking for full container fit-out
Typical Applications
- High-density parts and consumables storage in workshop containers
- Small tool and hardware organisation in maintenance containers
- Warehouse overflow storage — creates dense racked shelving without permanent fit-out
- Farm and rural container storage — feed, tools, and parts stored on multiple levels
- Construction site container fit-outs — high-density organisation for hand tools and consumables
- Retail and event storage — inventory sorted vertically by category
Data to Confirm at Order
- Assembly time estimate
- Recommended assembly tools
- Warranty terms on powder coating and steel structure
- Availability of matching two-tier and three-tier side racking
Compare with the 2-tier variant for taller items, or the 40ft multi-bay 3-tier kit for full-length fit-out. Browse the full container accessories range, or the 20ft and 40ft container ranges for containers to fit this racking into.
