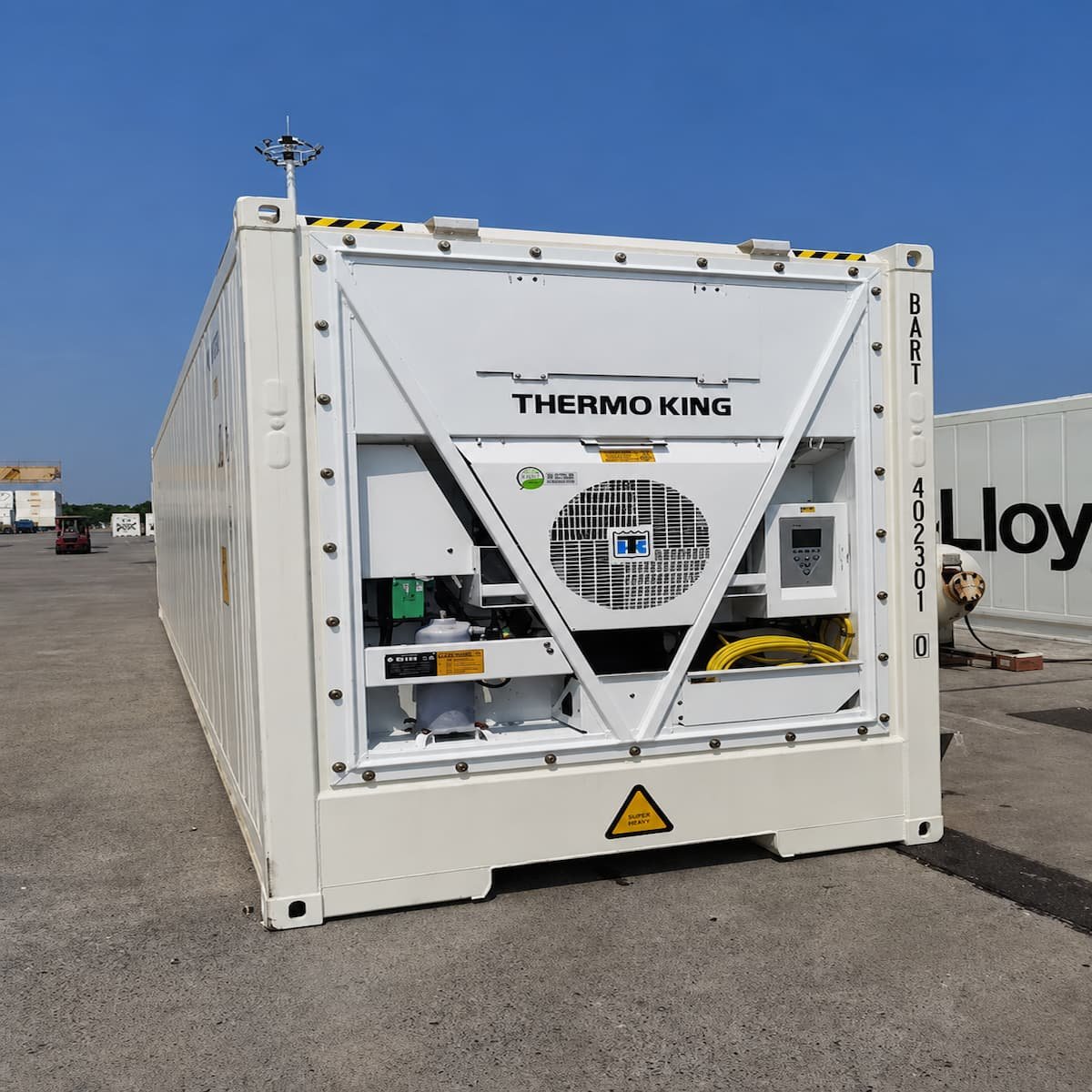

This new 40ft one-trip HC reefer container is factory-fitted with a Thermo King Magnum Plus refrigeration unit. The setpoint range from -40°C to +30°C covers frozen, chilled, and controlled ambient product classes. The container ships with a marine-grade stainless steel exterior, food-grade stainless steel interior walls, high-density polyurethane insulation, and full personnel safety provisions — suited to commercial cold chain operators, food processors, hospitality volume buyers, and cold-chain fit-out projects. Priced at the entry-cost tier of the Thermo King Magnum Plus HC reefer range for buyers who need the full-spec unit without the retail-tier premium. Built to ISO 668 dimensional standards.
Refrigeration Specifications
| Refrigeration unit | Thermo King Magnum Plus |
| Compressor type | Digital scroll with aluminized coating |
| Temperature range | -40°C to +30°C setpoint |
| Refrigerant | R452A (low-GWP HFO blend) |
| Power supply | 460V / 3-phase, 30A circuit |
| AUS grid compatibility | Voltage transformer required for 415V 3-phase supply |
| Power cable | ~15 m (50ft) included |
Container Body & Interior
| Container type | New 40ft HC ISO reefer, one-trip |
| Outer cladding | Marine-grade stainless steel (MGSS) |
| Interior walls | Stainless steel — food-grade |
| Insulation | High-density polyurethane throughout walls, roof, and floor |
| Floor | Aluminium flat floor — pallet and trolley compatible |
| Floor drains | 4 × automatic self-closing drains (2 front, 2 rear) |
| Interior liner | Aluminium scuff liner |
| Door curtain | Heavy-duty sliding thermal curtain |
| Safety door | Openable from inside — for manned cold storage |
| Interior lighting | LED interior light with dedicated switch |
| Panic alarm | Exterior siren and strobe light |
40ft One-Trip HC Reefer Container Dimensions
External
| Length | 12,192 mm (40′ 0″) |
| Width | 2,438 mm (8′ 0″) |
| Height | 2,896 mm (9′ 6″) — High Cube |
Internal (after insulation panels)
| Length | 11,582 mm (38′ 0″) |
| Width | 2,286 mm (7′ 6″) |
| Height | 2,591 mm (8′ 6″) |
Door Opening
| Width | 2,286 mm (7′ 6″) |
| Height | 2,540 mm (8′ 4″) |
Weight
| Tare weight | 4,500 kg (9,920 lbs) |
| Payload capacity | 29,500 kg (65,040 lbs) |
40ft One-Trip HC Reefer Container Key Features
- One-trip condition — new container body, first cargo voyage only
- Thermo King Magnum Plus refrigeration unit
- -40°C to +30°C setpoint — frozen, chilled, and ambient capability
- Food-grade stainless steel interior walls
- Marine-grade stainless steel exterior cladding — corrosion-resistant in coastal and industrial environments
- Polyurethane insulation throughout — low thermal transfer and running costs
- 4 automatic self-closing floor drains — washdown-friendly
- Panic alarm with exterior siren and strobe — personnel safety
- Safety door openable from inside — required for manned cold storage operations
- R452A refrigerant — low global warming potential HFO blend
- ~15 m (50ft) power cable included
- Built to ISO 668 Series 1 dimensional standards
Suitable For
- Commercial cold chain storage and distribution
- Food processing and food manufacturing facilities
- Hospitality volume purchases — hotels, resorts, catering groups, food service chains
- Pharmaceutical cold storage — subject to buyer’s validation, temperature mapping, and applicable TGA / GDP compliance
- Remote site refrigerated storage — mining, construction, agricultural operations
- Export of perishable goods in active international shipping
- Cold storage fit-out projects
Trade Tier Positioning
This container is identical in specification to our Pharmaceutical Cold Chain listing — same Thermo King Magnum Plus refrigeration unit, same marine-grade stainless steel exterior, same food-grade stainless interior, same panic alarm and inside-openable safety door, same 4 automatic floor drains. The hardware does not change between the two listings.
What differs is the level of buyer support included in the price. The retail-tier listing includes a full compliance documentation walkthrough — a detailed breakdown of IQ/OQ/PQ requirements, temperature classification guidance, and step-by-step support for buyers setting up their first regulated cold chain installation. This trade-tier listing is priced for volume and commercial buyers who already have their own validation processes in place, or who don’t require that guided compliance support — you’re paying for the container and refrigeration unit, not the documentation walkthrough.
If you’re unsure which tier suits your situation — particularly if this is your first TGA-regulated or GMP cold chain installation — we’d recommend the retail-tier listing, or contact us to discuss your specific compliance support needs before ordering.
Compliance & Site Requirements
The container is supplied with the manufacturer’s warranty on the container structure and Thermo King refrigeration unit. Site electrical connection requires a voltage transformer (415V to 460V) and installation by a licensed electrician. For use in TGA-regulated pharmaceutical storage, GMP-compliant cold chain, or clinical trial cold chain, additional buyer-arranged Installation Qualification (IQ), Operational Qualification (OQ), Performance Qualification (PQ), calibrated continuous temperature monitoring, and applicable regulatory documentation are required before regulated product is stored.
Warranty
Supplied with manufacturer’s warranty on both the container structure and the Thermo King refrigeration unit.
Compare configurations across the full refrigerated container range — used Cargo Worthy reefers, blast freezer variants, and other cold storage configurations available.
