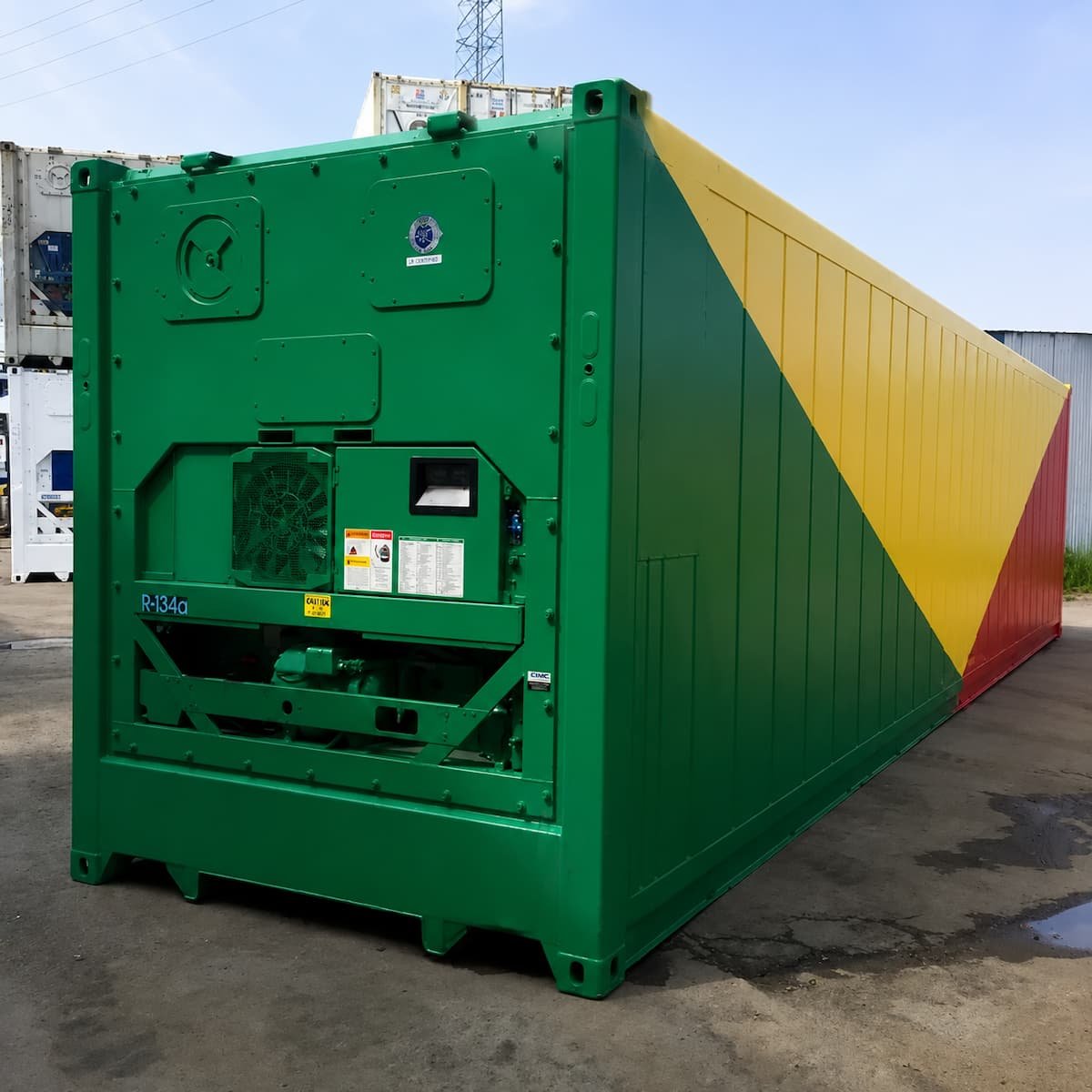

This 40ft HC reefer container cold chain export unit carries a valid CSC plate, R134a refrigerant, and 380V/32A three-phase power connection — a fully operational cargo worthy refrigerated container certified for active road, rail, and sea freight movements. The high cube profile delivers 2,698mm of internal clearance and 76.4 m³ of temperature-controlled volume. Furthermore, the -25°C to +25°C range covers full freezer to chiller applications without a second unit. In addition, the ISO 45R1 type code confirms port acceptance across all major Australian and international shipping networks.
40ft HC Reefer Container Cold Chain Export — Specifications
External Dimensions
| Dimension | Imperial | Metric |
|---|---|---|
| Length | 40′ 0″ | 12,192 mm |
| Width | 8′ 0″ | 2,438 mm |
| Height | 9′ 6″ | 2,896 mm |
Internal Dimensions
| Dimension | Imperial | Metric |
|---|---|---|
| Length | 39′ 5″ | 12,032 mm |
| Width | 7′ 8″ | 2,352 mm |
| Height | 8′ 10″ | 2,698 mm |
Door Opening
| Dimension | Imperial | Metric |
|---|---|---|
| Width | 7′ 8″ | 2,340 mm |
| Height | 8′ 5″ | 2,585 mm |
Weight & Capacity
| Spec | Value |
|---|---|
| Internal Volume | 76.4 m³ |
| Tare Weight | 4,550 kg |
| Max Payload | 29,450 kg |
| Max Gross Weight | 34,000 kg |
Refrigeration & Power
| Spec | Value |
|---|---|
| Temperature Range | -25°C to +25°C |
| Refrigerant | R134a |
| Power Connection | 380V / 32A three-phase |
| Operating Frequency | CEE 50Hz |
| Power Draw | 6–10 kW/h |
| Noise Output | 63–78 dB at 1m distance |
Cold Chain Compliance
| Spec | Value |
|---|---|
| Condition | Cargo Worthy (Used) |
| CSC Plate | Valid — accepted at all major ports |
| ISO Type Code | 45R1 |
| ISO Group Code | 45RT |
| Transport Modes | Road, rail, and sea — certified |
Who Uses the 40ft HC Reefer Container for Cold Chain Export
A 40ft HC reefer container cold chain export unit suits operators who move temperature-sensitive cargo across multiple transport legs — from farm gate or processing facility through to the export terminal and onto a vessel. The cargo worthy CSC plate removes the port access restriction that limits W&WT units to fixed-location storage. As a result, seafood exporters, meat processors, dairy producers, and pharmaceutical distributors use this unit to pack, pre-cool, and ship product in a single container without transferring cargo at any point in the chain. Moreover, the high cube profile gives 2,698mm of internal height — sufficient for hanging meat rails, full-height pharmaceutical racking, and stacked pallet configurations that a standard 40ft reefer won’t accommodate.
The R134a refrigerant system connects to standard 380V/32A three-phase infrastructure available at most Australian food processing facilities, cold storage sites, and export terminals without electrical upgrades. Furthermore, the 6–10 kW/h power draw sits within normal site board capacity at most commercial properties. In addition, the -25°C to +25°C range covers full freezer applications for seafood and meat alongside chiller applications for fresh produce, dairy, and pharmaceuticals — without requiring separate units for different product types.
Application Breakdown
Seafood & Meat Export
The 2,698mm internal height accommodates hanging meat rails and tall seafood racking configurations. Pre-cool the unit at the processing facility, load, and move directly to port — the cargo worthy CSC plate confirms port acceptance without additional inspection.
Fresh Produce & Dairy
Set the unit to chiller range (+2°C to +8°C) for fresh produce, cut flowers, and dairy. The R134a system holds temperature accurately across extended voyage times on coastal and international shipping routes.
Pharmaceutical Cold Chain
Pharmaceutical product requiring temperature-controlled storage and transport between +2°C and +8°C fits within the R134a operating range. The cargo worthy grade confirms the unit meets port and customs requirements for pharmaceutical freight movements.
Static Cold Storage
Connect to a three-phase supply and use the unit as a permanent or semi-permanent cold store on a processing site, farm, or distribution centre. The 76.4 m³ internal volume covers significant storage capacity without the construction cost and lead time of a purpose-built coolroom.
Mining & Remote Site Catering
Mining camps and remote construction sites use reefer containers to store perishable food supplies for large workforces. The unit connects to a site generator via 380V/32A supply and maintains consistent temperature through extended operational periods.
Key Features
- Cargo worthy — valid CSC plate, ISO 45R1, accepted at all major ports
- High cube profile — 9’6″ external, 8’10” internal height
- 76.4 m³ internal volume — maximum 40ft reefer capacity
- -25°C to +25°C range — full freezer to chiller in one unit
- R134a refrigerant — efficient, widely serviced in Australia
- 380V / 32A three-phase power — standard site infrastructure compatible
- 6–10 kW/h power draw — manageable site electrical load
- 29,450 kg max payload — full commercial load capacity
- Certified road, rail, and sea — no transport mode restrictions
- Suits seafood, meat, produce, dairy, pharmaceutical, and remote camp use
Browse Refrigerated Containers
Additionally, 20ft refrigerated containers, non-operational reefer shells, and one-trip Thermo King units are available across the refrigerated range. Browse our full selection of refrigerated containers to compare sizes, refrigerant types, and price points in stock.
This container meets ISO 668 Series 1 freight container standards. Therefore, it suits active refrigerated freight movements across all Australian and international road, rail, and sea transport systems.
Enquire About This 40ft HC Reefer Container
Available for delivery Australia-wide from Lowood QLD. Reply with your delivery postcode and power supply configuration for a final quote.
