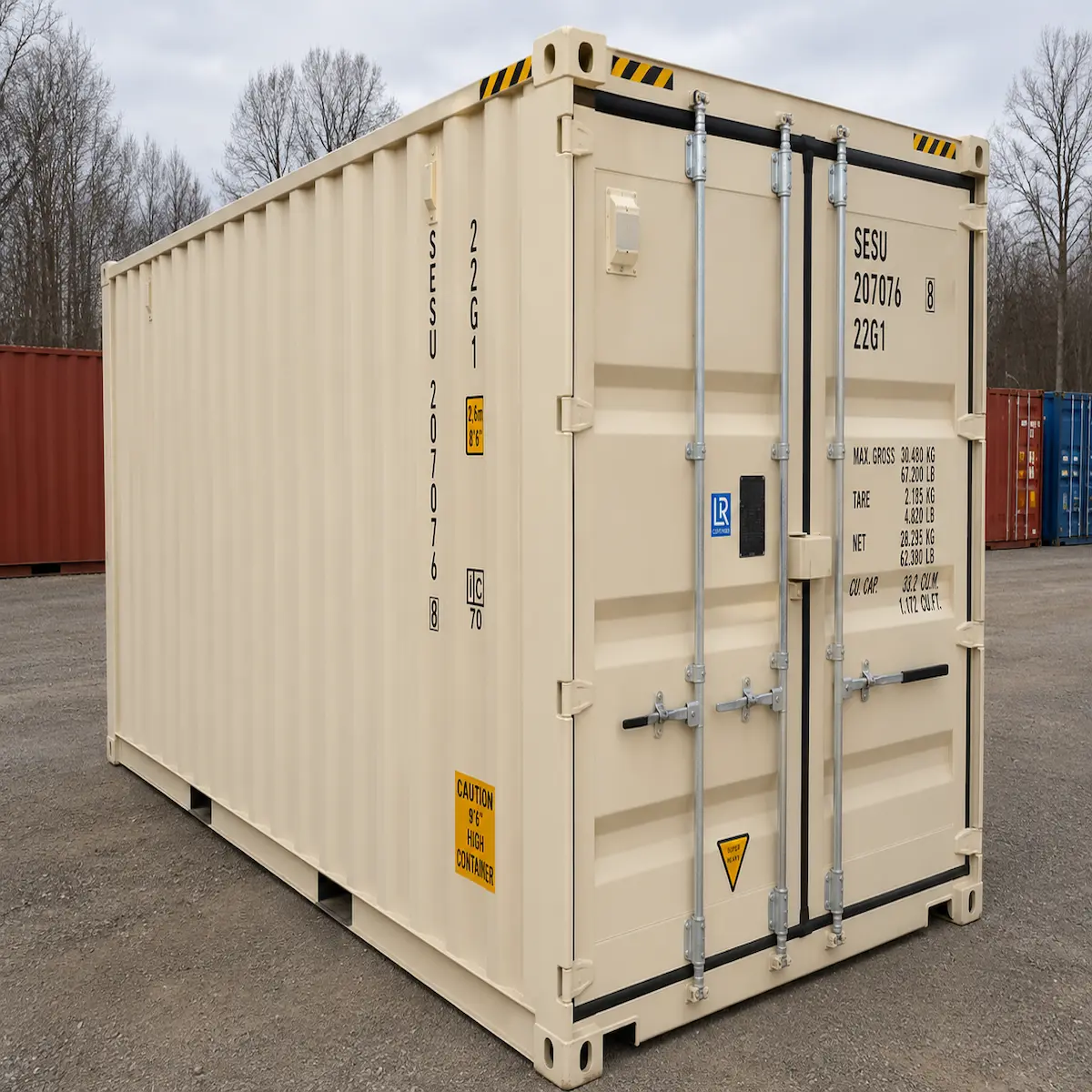

20ft High Cube One-Trip Shipping Container — New
This is a new 20ft high cube shipping container as you can buy in Australia. It was built new in China, shipped to Australia with a single load of goods, unloaded, and brought directly into our inventory. Furthermore, it has never been used for storage — the interior is clean, odour-free, and completely free of residue from previous cargo.
Moreover, this is a High Cube container — standing 9.5ft tall. As a result, it provides significantly more vertical clearance than a standard 20ft container. Additionally, it ships with a factory-fitted lockbox, 14 vents, coated floors, and an easy-open door — ready to use from the moment it arrives on site.
20ft High Cube Shipping Container Dimensions
| Measurement | Imperial | Metric |
|---|---|---|
| Exterior Length | 20′ | 6,058 mm |
| Exterior Width | 8′ | 2,438 mm |
| Exterior Height | 9’6″ (9.5′) | 2,896 mm |
| Interior Length | 19’4″ | 5,898 mm |
| Interior Width | 7’8″ | 2,352 mm |
| Interior Height | 8’10” | 2,698 mm |
| Door Opening Width | 7’8″ | 2,340 mm |
| Door Opening Height | 8’5″ | 2,585 mm |
| Floor Area | 160 sq ft | 14.86 m² |
| Internal Volume | ~1,380 cu ft | ~39 m³ |
20ft High Cube Shipping Container Weight Specifications
| Measurement | Weight |
|---|---|
| Tare Weight (Empty) | 2,300 kg |
| Payload Capacity | 28,180 kg |
| Maximum Gross Weight | 30,480 kg |
20ft High Cube Shipping Container Specifications
Condition: One-Trip (New) — Never previously loaded.
| Feature | Detail |
|---|---|
| Construction | Corrugated Corten steel — rust and corrosion resistant |
| Flooring | Coated floor on steel cross-member base |
| Door Type | Easy-open double swing rear cargo doors |
| Door Seals | Rubber gaskets — weatherproof and watertight |
| Locking Mechanism | Heavy-duty steel locking bars and handles |
| Lock Box | Factory-fitted — padlock protection on door handles |
| Ventilation | 14 vents — passive airflow throughout |
| Corner Castings | ISO standard forged steel — crane and forklift compatible |
| Condition | One-Trip (New) — never previously loaded |
| ISO Standard | ISO 668 Series 1 |
High Cube vs Standard Height — Key Difference
| Specification | Standard 20ft | High Cube 20ft |
|---|---|---|
| Exterior Height | 8’6″ / 2,591 mm | 9’6″ / 2,896 mm |
| Interior Height | 7’10” / 2,385 mm | 8’10” / 2,698 mm |
| Height Advantage | — | +300mm interior clearance |
The additional 300mm of interior clearance suits tall racking systems, site office conversions, and applications where standard containers fall short on vertical space. Therefore, if height matters for your application, this is the correct unit.
20ft High Cube Shipping Container Key Features
- One-Trip condition — built new, shipped once, sold in as-new condition
- High Cube — 9.5ft tall — 300mm more interior height than a standard 20ft
- 14 vents — superior passive ventilation reduces heat and condensation build-up
- Factory-fitted lockbox — padlock protection from day one
- Coated floor — durable, sealed surface on steel cross-member base
- Easy-open door — smooth, low-effort door operation for frequent access
- Corrugated Corten steel construction — rust, corrosion, and impact resistant
- ISO standard corner castings — compatible with crane lift and forklift transport
- Clean One-Trip interior — no odour, no residue, no prior cargo
Applications of a 20ft High Cube Shipping Container
Construction and Site Storage
Store tools, materials, and equipment securely on-site. Furthermore, the One-Trip interior is clean and dry — free of the odour and residue common in older used containers. As a result, it suits sensitive materials and equipment that cannot share space with chemical or food cargo residue.
Tall Racking and Shelving
The High Cube profile accommodates three-tier and four-tier racking systems with full vertical clearance. Moreover, 14 vents maintain airflow across all shelf levels — reducing heat and moisture build-up in a fully stocked container.
Site Office and Accommodation Conversion
The 9.5ft exterior height provides a comfortable interior ceiling for staff working inside. Therefore, this is the preferred base unit for site office, lunchroom, and accommodation container conversions.
Business and Commercial Storage
Retail, wholesale, and industrial operations use High Cube containers for overflow inventory and seasonal stock. Additionally, the lockbox and locking bars provide two layers of security for high-value goods stored around the clock.
Farm and Agricultural Storage
The 14-vent passive system makes this container well-suited to agricultural storage. Furthermore, improved airflow reduces condensation — protecting seeds, dry goods, and equipment from moisture damage in outdoor environments.
Why Buy One-Trip?
- As-new interior — no odour, no residue, no repair history
- No maintenance on arrival — no rust treatment, floor repairs, or repainting required
- Longer service life — new Corten steel outlasts used equivalents in permanent storage applications
- Conversion-ready — clean walls and coated floor reduce fit-out preparation time significantly
- Lockbox included — factory-fitted security at no additional cost
