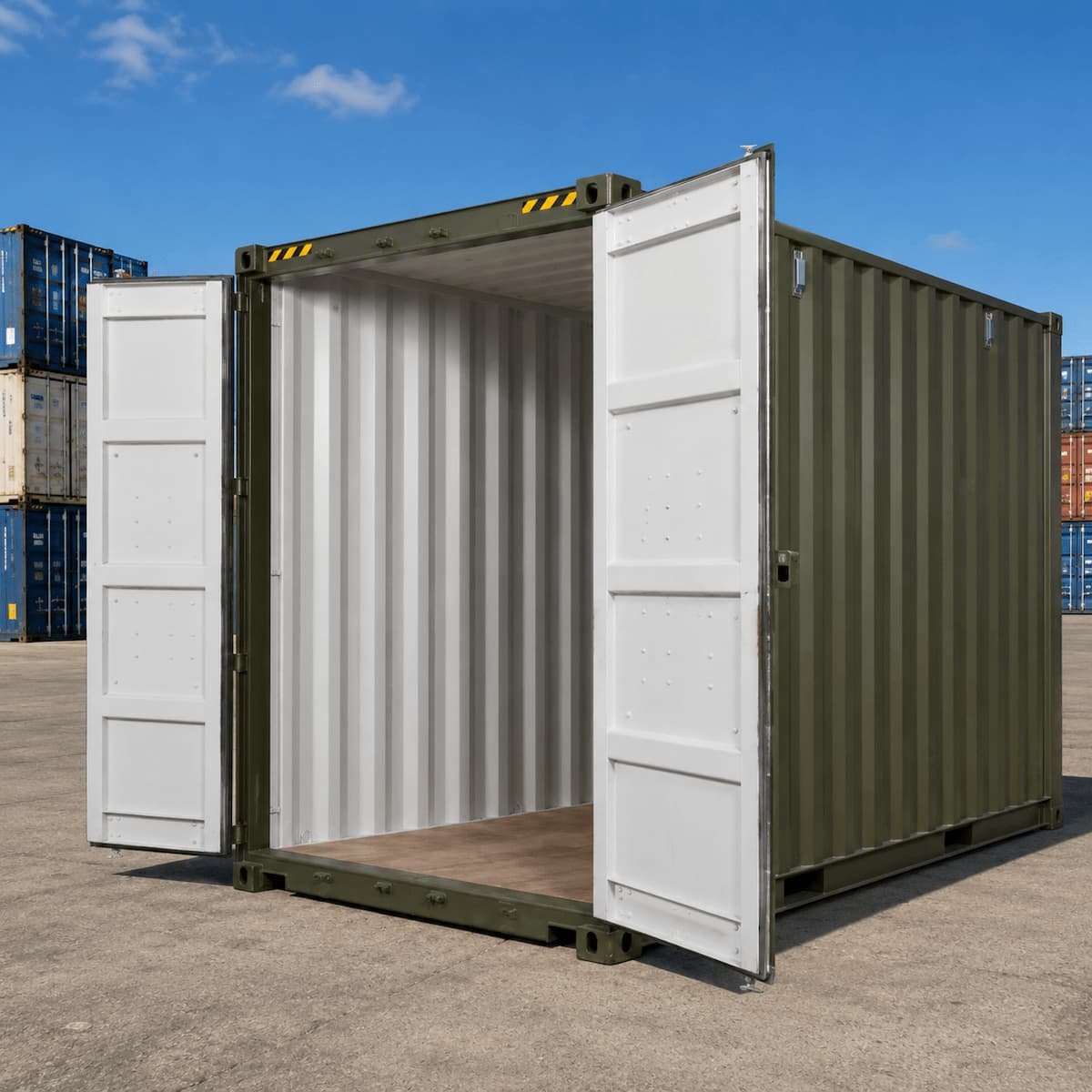

20ft High Cube One-Trip Export Container — CSC Plated — New
A brand new, 20ft High Cube Export Container built for active international export. This One-Trip High Cube export container meets full ISO 668 Series 1 dimensional standards and carries a valid CSC plate — certifying it for intermodal transport across road, rail, and sea without modification or re-certification.
Furthermore, the One-Trip condition means the container has completed a single commercial voyage and arrives in as-new structural condition. As a result, it is immediately eligible for loading, sealing, and export without inspection delays or condition downgrades at the port.
Moreover, the High Cube profile provides 300mm more interior height than a standard 20ft container. Therefore, it suits tall export cargo — machinery, equipment, and palletised goods that exceed standard container clearance — without resorting to an open top or flat rack configuration.
20ft High Cube Export Container Dimensions
| Measurement | Metric | Imperial |
|---|---|---|
| External Length | 6,058 mm | 20′ |
| External Width | 2,438 mm | 8′ |
| External Height | 2,896 mm | 9’6″ |
| Internal Length | 5,898 mm | 19’4″ |
| Internal Width | 2,352 mm | 7’8″ |
| Internal Height | 2,698 mm | 8’10” |
| Door Opening Width | 2,340 mm | 7’8″ |
| Door Opening Height | 2,585 mm | 8’5″ |
| Floor Area | 14.86 m² | 160 sq ft |
| Internal Volume | ~39 m³ | ~1,380 cu ft |
20ft High Cube Export Container Weight Specifications
| Measurement | Weight |
|---|---|
| Tare Weight (Empty) | 2,300 kg |
| Payload Capacity | 27,700 kg |
| CSC Plated Max Gross Weight | 30,000 kg (30 ton) |
Export and Compliance Specifications
Condition: One-Trip (New) — Never previously loaded.
| Feature | Detail |
|---|---|
| CSC Plate | Valid — certified for active international shipping |
| ISO Standard | ISO 668 Series 1 — full dimensional compliance |
| Intermodal Compatibility | Road, rail, and sea — no modification required |
| Construction | All Cor-Ten steel — rust and corrosion resistant |
| Corner Castings | ISO standard forged steel — crane and twistlock compatible |
| Flooring | 28mm marine plywood on steel cross-members |
| Doors | Exterior hinged double doors — full-width end opening |
| Door Seals | Rubber gaskets — weatherproof and cargo-secure |
| Locking Bars | 2 per door — cargo seal compatible |
| Lockbox | Factory-fitted — padlock and seal protection |
| Forklift Pockets | 2 per side — 4 total |
| Ventilation | 4 vents — passive airflow during transit |
| Colour | Olive Green |
CSC Certification — What It Means for Export
| Requirement | This Container |
|---|---|
| CSC Plate | Valid — issued at manufacture |
| ISO 668 Dimensional Compliance | Full compliance — 20ft High Cube |
| Intermodal Road Compatibility | ISO corner castings — twistlock and spreader bar compatible |
| Sea Freight Eligible | Accepted on all major shipping lines |
| Rail Freight Eligible | ISO standard footprint — fits standard rail well cars |
| Port Acceptance | No re-certification required at point of loading |
The CSC plate certifies this container as structurally sound for international intermodal transport. Furthermore, it was issued at the time of manufacture — not retrospectively — confirming the container was built to the required standard from the factory floor.
20ft High Cube Export Container Key Features
- Valid CSC plate — certified for active international shipping from day one
- ISO 668 Series 1 compliant — accepted on all major global shipping lines
- One-Trip condition — as-new structural integrity, no prior damage or repairs
- High Cube 9’6″ profile — 300mm more interior height than a standard 20ft
- 30 ton CSC plated gross weight — handles heavy export cargo loads
- All Cor-Ten steel construction — corrosion resistant for long ocean voyages
- ISO standard corner castings — twistlock, crane, and spreader bar compatible
- Rubber door gaskets — weatherproof and cargo-secure seal in all conditions
- 2 locking bars per door — compatible with international cargo sealing requirements
- 28mm marine plywood floor — moisture-resistant, forklift-rated base
- 4 passive vents — reduces condensation during long-haul ocean transit
20ft High Cube Export Container Applications
Tall Cargo and Machinery Export
Export cargo exceeding standard 20ft container clearance loads into the High Cube interior without resorting to open top or flat rack configurations. Furthermore, the sealed High Cube protects machinery, equipment, and sensitive cargo from weather exposure during ocean transit — unlike open top alternatives.
Australian Agricultural Export
Australian agricultural exporters use High Cube containers for bulk bagged goods, palletised produce, and tall commodity loads. Moreover, the extra interior height accommodates double-stacked bulk bags and taller palletised configurations — maximising cubic utilisation per container on export voyages.
Mining and Resources Equipment Export
Mining equipment, spare parts, and plant machinery ship internationally in High Cube containers where standard clearance is insufficient. As a result, exporters avoid expensive open-top surcharges and the risk of weathering on high-value equipment shipments.
Intermodal Door-to-Door Freight
ISO compliance and valid CSC certification allow this container to move seamlessly by road, rail, and sea without transfer to another unit. Therefore, it suits door-to-door freight operations where cargo integrity and handling minimisation are critical.
