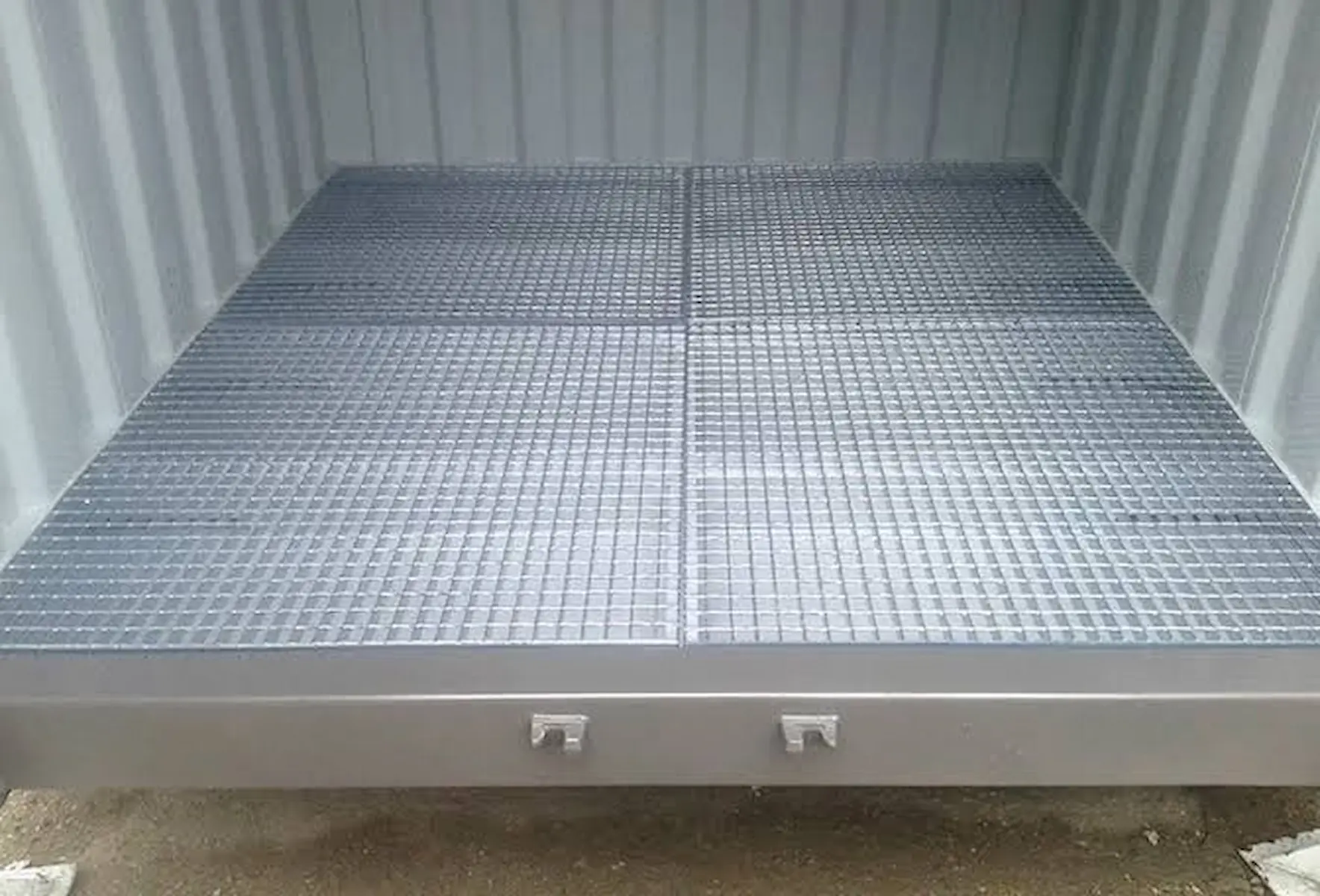

This 10ft open mesh floor bunded store combines a 300mm raised Durbar sump with a hot-dip galvanised open mesh floor sitting above it — spills from stored drums and IBCs pass directly through the mesh and collect in the sealed sump below, keeping the stored containers above the pooled liquid at all times. The galvanised mesh floor carries a 7.5 kN/m² load rating, handling the weight of full 200-litre drums, IBCs, and heavy chemical containers without deflection. Furthermore, 12 vents provide the cross-airflow required to keep flammable, corrosive, and volatile vapour concentrations below hazardous thresholds. In addition, the factory fitted lockbox and double locking bars secure the contents when the site is unattended.
10ft Open Mesh Floor Bunded Store Specifications
Condition: One-Trip (New) — Never previously loaded.
External Dimensions
| Dimension | Metres | Feet / Inches |
|---|---|---|
| Length | 2.99 m | 9′ 10″ |
| Width | 2.44 m | 8′ 0″ |
| Height | 2.59 m | 8′ 6″ |
Internal Dimensions
| Dimension | Metres | Feet / Inches |
|---|---|---|
| Length | 2.84 m | 9′ 4″ |
| Width | 2.35 m | 7′ 8″ |
| Height | 2.39 m | 7′ 10″ |
Door Opening
| Dimension | Metres |
|---|---|
| Door Width | 2.34 m |
| Door Height | 2.28 m |
Construction & Bunding Features
| Feature | Detail |
|---|---|
| Base Unit | One-trip Cor-Ten steel container |
| Bund Height | 300mm raised bund |
| Sump Floor | 3mm Durbar chequer plate — welded in, liquid-tight |

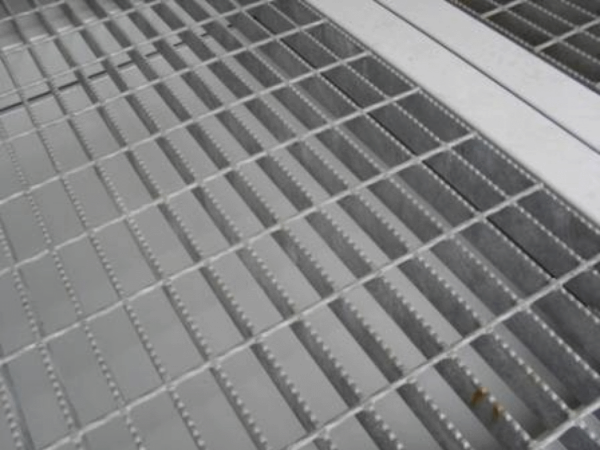

| Working Floor | Hot-dip galvanised open mesh — sits above sump |
| Mesh Load Rating | 7.5 kN/m² |
| Total Weight | 1,620 kg |
| Doors | Exterior hinged double doors — end wall |
| Locking Bars | 2 per door |
| Security | Factory fitted lockbox — padlock ready |
| Ventilation | 12 vents — high airflow for chemical storage |
| Forklift Pockets | Fitted — crane-free repositioning |
| Condition | One-Trip (New) |
Why the Open Mesh Floor Is the Right Choice for Drum and IBC Storage
A 10ft open mesh floor bunded store is the correct configuration when stored containers sit directly on the floor of the bunded unit. With a flat floor or raised Durbar sump, any spill pools under the drum or IBC — the container base sits in the liquid, accelerating corrosion and creating an ongoing exposure risk for anyone entering the unit. The open mesh floor eliminates that problem entirely. Spills pass through the mesh immediately and collect in the sealed Durbar sump below, while the stored containers remain elevated and dry on the mesh surface above. As a result, stored drums stay intact longer, internal hygiene is easier to maintain, and spill cleanup requires draining the sump rather than mopping around containers.
The 7.5 kN/m² galvanised mesh load rating handles a full 200-litre steel drum at 240 kg, a 1,000-litre IBC at approximately 1,200 kg, and multiple smaller containers simultaneously without mesh deflection. Furthermore, the hot-dip galvanised finish on the mesh resists chemical vapour corrosion — standard mild steel mesh degrades quickly in acid vapour and solvent atmospheres. In addition, the 12 vents maintain the airflow volume required under the Australian Dangerous Goods Storage and Handling Code to keep vapour concentrations at safe working levels throughout the unit.
Key Features
- Open mesh floor above sump — spills drain through, containers stay elevated and dry
- 7.5 kN/m² mesh load rating — handles full IBCs and 200-litre drums
- Hot-dip galvanised mesh — corrosion resistant in chemical vapour atmospheres
- 300mm raised bund — deep sump capacity below mesh
- 3mm Durbar sump base — welded-in, fully liquid-tight
- One-trip Cor-Ten steel body — near-new condition, chemical resistant
- 12 vents — dangerous goods code airflow compliance
- Factory fitted lockbox — padlock security included
- 2 locking bars per door — double door end access
- Forklift pockets fitted — crane-free site repositioning
Browse 10ft Shipping Containers
Additionally, flat floor and raised floor bunded stores are available at lower price points for different storage requirements. Browse our full range of 10ft shipping containers to compare bunded store configurations and price points in stock.
This container meets ISO 668 Series 1 freight container standards. Therefore, it is built to international structural and dimensional specifications.
Enquire About This 10ft Open Mesh Floor Bunded Store
Available for delivery Australia-wide. Reply with your postcode and intended storage materials to receive a full delivered price and compliance advice.
